User-Friendly Control Panel
This device, with its Wi-Fi capability, allows it to constantly stay up-to-date with free internet updates, setting it apart from its competitors by offering a technological advantage.
A fully automatic, complete air conditioning service device for R134a – R407C – R410 refrigerants.

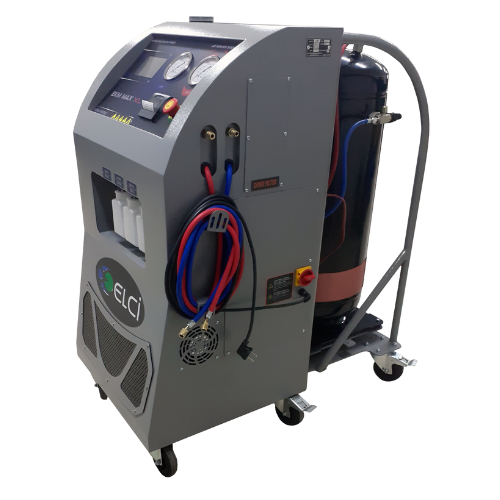

The EKM MAX XL is constructed from high-tech, ultra-reliable components. The 5″ TFT HMI color touchscreen provides great convenience for operator guidance. The user-friendly control panel makes every technician an air conditioning expert.
User-Friendly Control Panel
This device, with its Wi-Fi capability, allows it to constantly stay up-to-date with free internet updates, setting it apart from its competitors by offering a technological advantage.
A fully automatic, complete air conditioning service device for R134a – R407C – R410 refrigerants.
The EKM MAX XL is constructed from high-tech, ultra-reliable components. The 5″ TFT HMI color touchscreen provides great convenience for operator guidance. The user-friendly control panel makes every technician an air conditioning expert.
Containers for Used and New Oil
The used old oil is automatically removed from the system and collected in the old oil container. New oil is then automatically added in the set amount.
Analog Indicators
High-quality analog gauges for the most accurate results. Low Pressure: 80 bar. High Pressure: 160 bar.
Ergonomics
Easy to move and park thanks to its high maneuverability.
Device Features
● Gas extraction, air release, oil draining, vacuuming, leak testing, oil injection, and gas filling processes are performed automatically without requiring user intervention.
● Microprocessor controlled
● High-efficiency gas is recyclable.
● Automatic leak detection system via high-precision vacuum sensor.
● High-precision temperature sensor
● High pressure protection system
● Filter, vacuum pump oil and compressor oil maintenance reminders

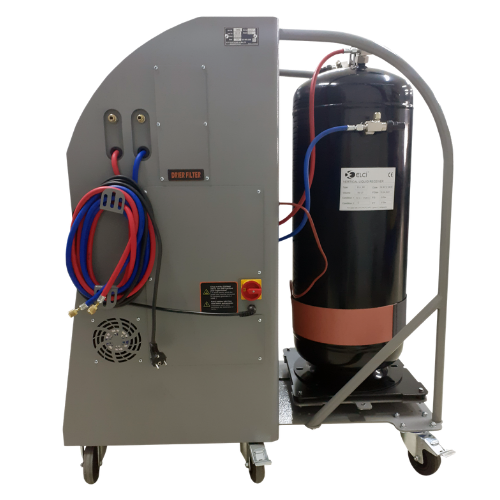

● Heating belt that increases tank pressure in a controlled manner for rapid gas filling.
● Automatic tank full warning and shut-off.
● Automatic old oil drain
● Automatic oil injection
● Automatic air release
● Gas purifier filter to separate acid, moisture and particles from the refrigerant gas.
● Statistical information function for tracking refrigerant gas retrospectively, both recovered and added.
● Database containing current refrigerant gas levels for passenger cars and commercial vehicles.
Technical Specifications
Compressor
1/2 HP 12 cc hermetik
Dimensions
97cm x 55cm x 111cm
Screen
5″ TFT HMI touchscreen
Filter Capacity
150 kg
Hose Length
300 cm
Operating Temperature
8° to 49° C
Power
220 V ± 10% / 50 Hz
Gas Drawing Rate
450 gr/min
Gas Type
R134a & R407C & R410
Gas Tank
60 kg
Gas Storage Tank
50 kg
Vacuum Pump
10.2 m³/h
Weight
120 kg
Scale Sensitivity
± 5 gr
