Standard
MAX 3
The most efficient choice for busy workshops working with a single refrigerant. Configured for R134a or R1234yf when ordered.
- R134a or R1234yf
- 25 kg tank, 33 kg optional
- Separate oil line for hybrid vehicles

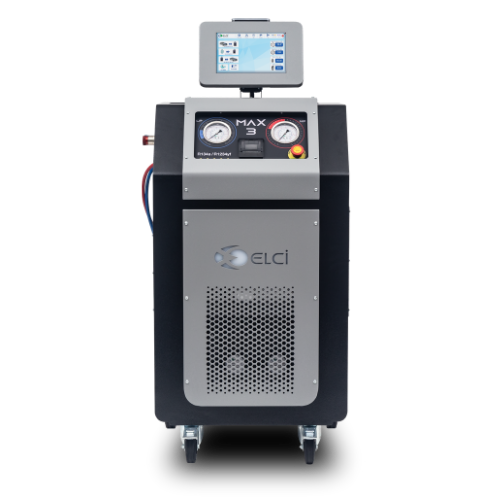

A/C service station
The fully automatic A/C service station for high-volume workshops.
10" IPS touchscreen, 25 kg tank, 450 g/min recovery. Free updates over Wi‑Fi, service reports sent by e‑mail. Hybrid Multi option for multiple refrigerants, PRO option for refrigerant analysis.
R134a / R1234yf
Who it's for
The MAX 3 is the unit for workshops where A/C service is a core revenue stream, not a sideline. The large tank, fast recovery and reporting cut waiting times in the busy season.
Workshops that need brand-standard reporting, an extensive vehicle database and corporate service records.
Heavy traffic in season; the 25 kg tank and 450 g/min rate shorten the time per vehicle, so more cars leave the same day.
High capacity for buses and service vehicles; 33 kg tank option and a rugged steel housing.
Key features
360° rotating panel; multilingual menu and step-by-step operator guidance. The whole process at a glance on the large screen.
Software and the vehicle database are updated free of charge over the internet; the service report is e‑mailed to the customer.
Up-to-date refrigerant and oil quantities for passenger and commercial vehicles are stored in the unit; select make/model and the values are filled in automatically.
Gram-accurate charging with high-precision sensors; never too little, never too much refrigerant.
Recovery, vacuum, leak test, oil and refrigerant charging run in sequence without intervention.
Leak detection with a precision vacuum sensor; non-condensable gases are purged automatically when needed.
A separate oil line for hybrid vehicles and a built-in UV dye injection system for leak detection.

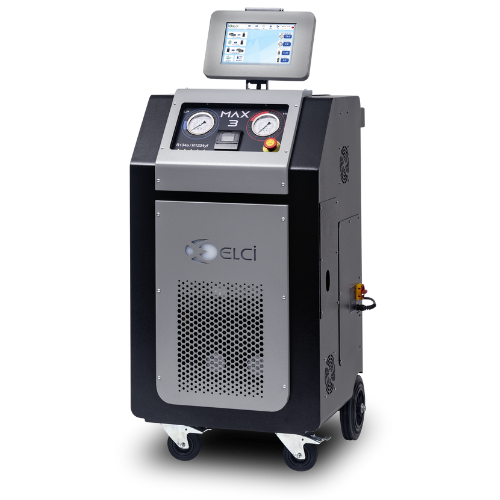

Metal cabinet resistant to chemicals, impacts and scratches; easy to manoeuvre with a 360° rotating screen and four wheels.
Service workflow
Seven steps run in sequence without user intervention. Every job can be printed on the 57 mm thermal printer or reported by e‑mail.
Specifications
| Refrigerant | R134a or R1234yf (selected when ordering) |
|---|---|
| Display | 10" IPS touchscreen, 360° rotating panel, multilingual menu |
| Refrigerant storage tank | 25 kg (33 kg optional) |
| Refrigerant recovery rate | 450 g/min (at constant pressure, max.) |
| Scale accuracy | ±5 g |
| Compressor | 3/8 HP, 12 cc, hermetic |
| Vacuum pump | 10,2 m³/h (4,5 CFM) |
| Drier filter capacity | 150 kg |
| Hose length | 300 cm (LP blue / HP red, 1/4" SAE) |
| Printer | 57 mm thermal printer (standard) |
| Port | Wi‑Fi (updates, e‑mail reports), Bluetooth |
| Operating temperature | 8–49 °C |
| Power | 220 V ±%10 / 50 Hz |
| Dimensions (W × D × H) | 58 × 61 × 134 cm |
| Weight | 114 kg |
| Packaging dimensions | 77 × 72 × 131 cm |
| Certification | CE · ISO 9001 manufacturing |
The MAX 3 family
Same housing, same 10" screen, same speed. The difference is what you want to do with the refrigerant: single refrigerant, multiple refrigerants or service with analysis.
The most efficient choice for busy workshops working with a single refrigerant. Configured for R134a or R1234yf when ordered.
Works with more than one refrigerant using external cylinders and the electronic scale system; for fleets and workshops with a mix of refrigerants.
The built-in analysis module measures the purity of the vehicle's refrigerant before charging; contaminated or mixed refrigerant is caught before it can damage the unit or the compressor.
| Feature | MAX 3 | MAX 3 Hybrid Multi | MAX 3 PRO |
|---|---|---|---|
| Refrigerant | R134a or R1234yf | R134a / R1234yf, multi-refrigerant charging with external cylinders | R134a / R1234yf, multi-refrigerant charging |
| Refrigerant analysis module | — | — | Built-in |
| Hybrid vehicle function | Hybrid oil line | Yes | Yes |
| Display | 10" IPS | 10" IPS | 10" IPS |
| Tank | 25 kg (33 kg optional) | 25 kg | 25 kg |
| Recovery | 450 g/dk | 450 g/dk | 450 g/dk |
| Who it's for | Busy workshops working with a single refrigerant | Fleets and workshops with a mix of refrigerants | Authorised service centres that need to document refrigerant quality |
Used together with
Spares & maintenance
150 kg capacity refrigerant purification filter; traps acid, moisture and particles. Replace when the unit warns you.
Oils & refrigerants
PAO 68, POE 100, PAG 46 and PAG EP46 compressor oils; Honeywell R1234yf and R134a refrigerants.
Spares & maintenance
Value vacuum pumps and ISO 68 pump oil (ELC‑A09). Replace when the unit gives a maintenance reminder.
Leak detection
UV kits, torches, electronic detector, Seal Pro leak sealers and Hydro Trace PRO ATC.
Frequently Asked Questions
The EKM MAX 3 is configured for either R134a or R1234yf when ordered; it is the most efficient choice for workshops working with a single refrigerant. For workshops with a mix of both, see the MAX 3 Hybrid Multi and MAX 3 PRO models.
No. The unit connects to the internet via Wi‑Fi; software and vehicle database updates are free. A unit you buy today stays up to date for years.
Recharging units carry a 2-year manufacturer's warranty. On-site service is provided across Türkiye within 24–48 hours; labour after a repair is covered by an additional 6-month warranty. Service is provided by the team that designed and built the unit. For a fault under warranty the process has four steps: notification and registration, assessment, repair, testing and delivery; details are on the technical service page. on the technical service page.
The filter loses its effectiveness after cleaning 150 kg of refrigerant; the unit tracks filter life and warns you when it is due. Because it does not cause a blockage, do not ignore the warning: an unchanged filter cannot purify the refrigerant.
Yes. The device is installed on-site, the scales and vacuum system are calibrated, and your technicians are provided with training on how to use it. A user manual in Turkish, as well as training videos, are also available on our YouTube channel.
Yes. The unit is installed on site, the scales and vacuum are calibrated, and your technicians receive user training. The user manual and training videos are also available on our YouTube channel.
