Know what the refrigerant is before you charge.
The ELC‑ID identifies R134a and R1234yf refrigerants in a vehicle or cylinder as a percentage, using an NDIR sensor. Contaminated or mixed refrigerant is caught before it can damage your service unit or the vehicle's compressor.
R134a / R1234yf
Who it's for
Mixed or contaminated refrigerant is one of the most common causes of damage to the recovery unit's filter and the vehicle's compressor. A two-minute analysis prevents an expensive repair.
Analyse every vehicle before recovery, so the unit's tank and drier filter are protected from contaminated refrigerant.
Document refrigerant quality for the customer and the brand; the result is reported by e‑mail.
Verify the purity of the refrigerant in a cylinder before buying or selling.
Key features
The non-dispersive infrared sensor identifies R134a or R1234yf as a percentage, so you make the service decision quickly and with confidence.
User-friendly interface; results are clearly shown on screen.
Software updates arrive over Wi‑Fi; analysis results are sent directly by e‑mail, with no paper waste.
No external power supply needed; works with 12 V and 24 V systems.
Reverse-polarity protection for the positive and negative terminals.

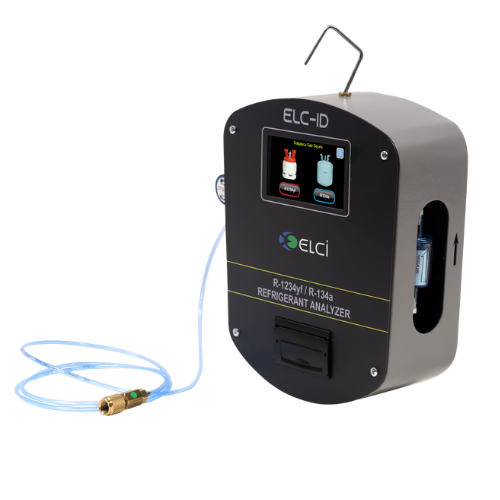

A housing that withstands knocks and drops; hangs under the bonnet from its integrated hook.
A printer version for those who want a printed result.
The results of the last 5 tests are stored on the unit; USB 3.0 and RS232 connections.
How to use

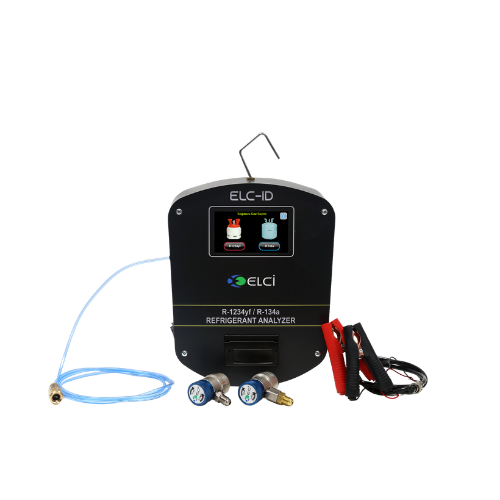

The unit is powered from the vehicle battery, connects to the service port or cylinder with an adapter, and completes the analysis with less than 5 grams of sample.
Specifications
| Refrigerant type | R1234yf ve R134a |
|---|---|
| Result unit | % (percentage) |
| Sensor type | NDIR (non-dispersive infrared) |
| Operating pressure | 1.5–12 bar (22–174 psi) |
| Sample quantity | < 5 g / test |
| Test period | 2 minutes 20 seconds |
| Operating temperature | +10 … +49 °C |
| Power | 12–24 V DC (vehicle battery) |
| Port | USB 3.0, RS232 |
| Printer | Thermal (optional) |
| Result storage | 5 tests |
| Dimensions (W × D × H) | 9,5 × 21,5 × 27,5 cm |

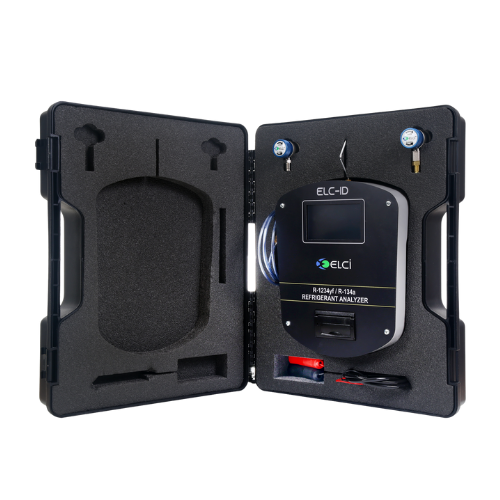

| Weight | 3 kg (kit with case 5.2 kg; case 37 × 14 × 44 cm) |
| Approvals | CE |
Used together with
A/C service station
10" IPS display, 25 kg tank, 450 g/min. Fully automatic station for high-volume workshops; Hybrid Multi and PRO options.
Oils & refrigerants
PAO 68, POE 100, PAG 46 and PAG EP46 compressor oils; Honeywell R1234yf and R134a refrigerants.
Connection & service
R134a / R1234yf quick couplers, valve core and O‑ring kits, hose sets, manifold and repair kits.
Leak detection
UV kits, torches, electronic detector, Seal Pro leak sealers and Hydro Trace PRO ATC.
Frequently Asked Questions
Refrigerant that is mixed (R134a + R1234yf) or contains air or foreign gases gets into your service unit's tank and filter and damages the vehicle's compressor and cooling performance. Analysis takes two minutes; a repair takes days and costs thousands. For details, see the blog article "Why refrigerant analysis matters".
No. The ELC‑ID is designed for R134a and R1234yf refrigerants.
Yes. The result is sent by e‑mail over Wi‑Fi; an optional thermal printer can be added for a printed copy.
The unit connects to the internet via Wi‑Fi and downloads updates itself; you always stay on the latest version.
Recharging units carry a 2-year manufacturer's warranty. On-site service is provided across Türkiye within 24–48 hours; labour after a repair is covered by an additional 6-month warranty. Service is provided by the team that designed and built the unit. For a fault under warranty the process has four steps: notification and registration, assessment, repair, testing and delivery; details are on the technical service page. on the technical service page.
Yes. The unit is installed on site, the scales and vacuum are calibrated, and your technicians receive user training. The user manual and training videos are also available on our YouTube channel.
