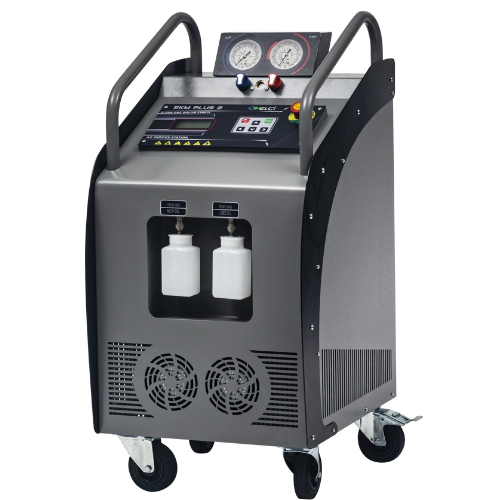

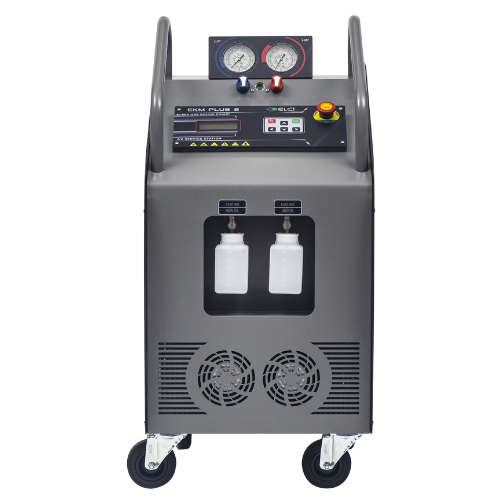

EKM PLUS 2
New Design, Fast Service Options
The EKM Plus 2 is not only suitable for daily service use but also offers service capabilities anywhere thanks to its portability. The EKM Plus 2 portable service station is particularly suitable for servicing construction and agricultural machinery, as well as ships. The easily transportable station allows operators to perform maintenance on vehicles in the field. If your air conditioning system malfunctions on a construction site, during harvesting, or while sailing, you can receive service without having to go to a service station.
New Design, Fast Service Options
The EKM Plus 2 is not only suitable for daily service use but also offers service capabilities anywhere thanks to its portability. The EKM Plus 2 portable service station is particularly suitable for servicing construction and agricultural machinery, as well as ships. The easily transportable station allows operators to perform maintenance on vehicles in the field. If your air conditioning system malfunctions on a construction site, during harvesting, or while sailing, you can receive service without having to go to a service station.
Microprocessor Controlled
Equipped with a microprocessor-controlled system, the EKM Plus 2 is designed for field servicing of air conditioning systems using R134a refrigerant. A user-friendly control panel, 4x20 character LCD display, and analog displays ensure ease of use.
Service Everywhere
Thanks to the 2000-watt converter, it can operate on 12 volts by drawing power from the vehicle's battery in environments where 220 volts is unavailable. This superior feature is offered as an option.
Ergonomics
Storage pocket for accessories and tools. Easy to move and park thanks to its high maneuverability.
Simple, Accurate and Efficient
EKM PLUS 2 uses an electronic scale for accurate and continuous monitoring of refrigerant gas. This highly efficient gas recovery device also performs automatic leak detection with the help of a highly sensitive vacuum sensor.
Device Features
● Air release, oil draining, vacuuming, leak testing, and gas filling processes are performed automatically without requiring user intervention.
● Microprocessor controlled
● Easy-to-use control panel
● High-precision temperature sensor
● Automatic oil drain
● Automatic oil filling
● Cooling fans
● Automatic air release
● Gas purifier filter to separate acid, moisture and particles from the refrigerant gas.
● Cooling fans
● Electronic scale
● Refrigerant gas storage tank
● Statistics function for monitoring loaded, recovered, and added refrigerant gas.
● Database containing current refrigerant gas levels for passenger cars and commercial vehicles.
● Filter, vacuum pump oil and compressor oil maintenance reminders
● Storage pocket for tools and accessories
● Two swivel wheels for easy maneuvering
Technical Specifications
Compressor
1/5 HP 5.5 cc hermetik
Dimensions
46 cm x 93 cm x 63 cm
Screen
4×20 karakter LCD
Filter Capacity
100 kg
Hose Length
180 cm
Operating Temperature
8° – 49° C
Power
220 V ± 10% / 50 Hz
Gas Drawing Rate
250 gr/min
Gas Type
R134a
Scale Sensitivity
± 5 gr
Gas Storage Tank
12 kg
Vacuum Pump
3 m³/h
Weight
68 kg
Optional Features
Hose
250 cm | 300 cm
Converter
2000W 12V DC– 220V AC
Gas Heater Belt
300W
